Connector End View (C1010) - INLINE

Connector Viewer - 150

Inline: Description Color Harness Base Part # Service Pigtail
C1010 INLINE 14A00512A581 Not Available
Terminal Part Number  Service Part Number  Size
AU5T-14474-DA Not Available
7C3T-14474-KA Not Available
1F1T-14421-DA Not Available
*97BG-14421-ABB Not Available
*AU5T-14421-EA Not Available
DU5T-14474-JAA Not Available
BU5T-14421-HA EU2Z-14421-CA 1.5
2L1T-14421-BA EU2Z-14421-CA 1.5
97BG-14421-BCA EU2Z-14421-EA 2.8
2L1T-14421-CA EU2Z-14421-CA 1.5
97BG-14421-BBA EU2Z-14421-EA 2.8
3M5T-14474-HCA DU2Z-14474-EA 2.8
97BG-14474-BBA DU2Z-14474-EA 2.8
AU5T-14421-EA EU2Z-14421-CA 1.5
1F1T-14421-BA EU2Z-14421-EA 2.8

MALE

Check for Terminal Part Numbers

Harness

14A005

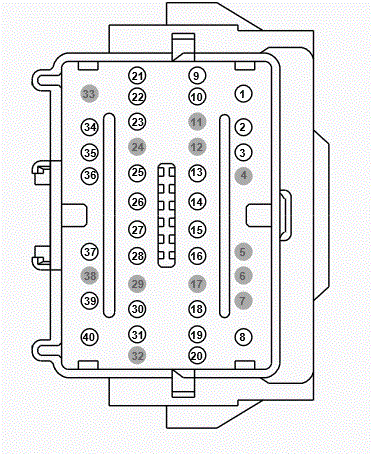

G00595413Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 VE922 (VT-GN) 20 BU5T-14421-HA
1 VE922 (VT-GN) 22 2L1T-14421-BA
1 VE922 (VT-GN) 4 2L1T-14421-BA
2 SBB70 (BN-RD) 10 1F1T-14421-DA
2 SBB70 (BN-RD) 12 97BG-14421-BCA
3 SBB77 (GY-RD) 10 1F1T-14421-DA
4 * * N/A
5 * * N/A
6 * * N/A
7 * * N/A
8 CBK02 (GN) 18 2L1T-14421-CA
8 CBK02 (GN) 18 AU5T-14421-EA
8 CBK02 (GN) 20 *AU5T-14421-EA
9 CCD04 (GY-YE) 18 AU5T-14421-EA
10 RCD04 (BU-OG) 18 AU5T-14421-EA
11 * * N/A
12 * * N/A
13 VCA06 (WH-OG) 20 2L1T-14421-BA
14 RCA20 (BN) 20 2L1T-14421-BA
15 CE229 (BU-GN) 20 2L1T-14421-BA
15 CE229 (VT-OG) 20 2L1T-14421-BA
16 CE420 (BN-BU) 20 BU5T-14421-HA
16 CE420 (GN-VT) 20 2L1T-14421-BA
16 CE420 (GY-VT) 20 BU5T-14421-HA
17 * * N/A
18 VE225 (YE-OG) 22 2L1T-14421-BA
19 VE518 (BN-WH) 22 2L1T-14421-BA
20 VE934 (GY-BN) 20 BU5T-14421-HA
21 CE347 (BU-GN) 20 BU5T-14421-HA
21 CE347 (VT-OG) 20 2L1T-14421-BA
22 LE230 (BN-BU) 20 *97BG-14421-ABB
22 LE230 (BN-BU) 20 *97BG-14421-ABB
22 LE230 (BN-BU) 22 *97BG-14421-ABB
22 LE230 (BN-BU) 4 *97BG-14421-ABB
22 LE230 (BN-BU) 4 *97BG-14421-ABB
23 CE204 (WH-BU) 20 BU5T-14421-HA
23 CE204 (WH-BU) 22 2L1T-14421-BA
24 * * N/A
25 CRD19 (VT-WH) 22 2L1T-14421-BA
26 RRD19 (BN-VT) 22 2L1T-14421-BA
27 LE424 (YE-GN) 22 2L1T-14421-BA
28 RE407 (YE-VT) 20 BU5T-14421-HA
28 RE407 (YE-VT) 22 2L1T-14421-BA
29 * * N/A
30 CRW13 (GN) 18 AU5T-14421-EA
30 CRW13 (GN) 20 2L1T-14421-BA
31 SBP14 (BN-RD) 20 BU5T-14421-HA
32 * * N/A
33 * * N/A
34 CCB18 (YE-GY) 12 97BG-14421-BCA
35 CCB19 (GN-BN) 12 97BG-14421-BCA
36 ZA173 (OG) 18 97BG-14421-BBA
37 CBK02 (GN) 18 97BG-14421-BBA
38 * * N/A
39 RE259 (BU) 20 1F1T-14421-BA
40 RE230 (WH) 22 2L1T-14421-BA
40 RE230 (WH-VT) 4 2L1T-14421-BA
40 RE407 (YE-VT) 20 BU5T-14421-HA

FEMALE

Harness

12A581

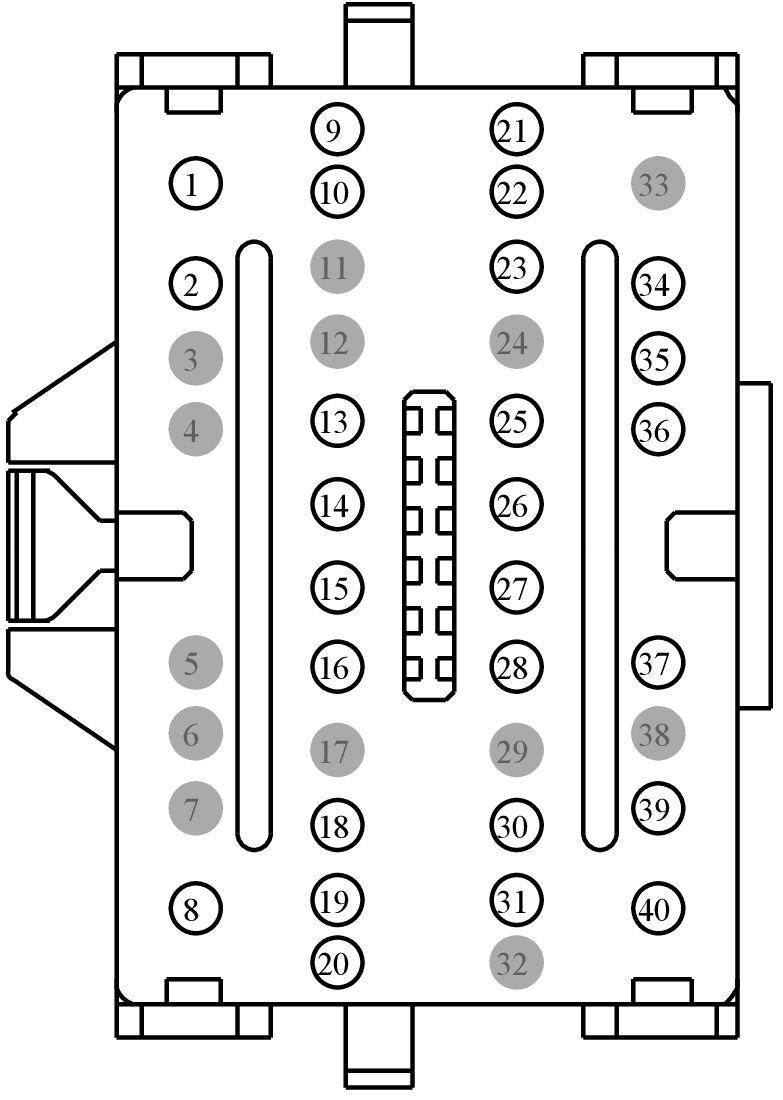

GFDWR72188Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 VE922 (VT-GN) 20 AU5T-14474-DA
2 SBB70 (BN-RD) 12 3M5T-14474-HCA
3 * * N/A
4 * * N/A
5 * * N/A
6 * * N/A
7 * * N/A
8 CBK02 (GN) 18 7C3T-14474-KA
9 CCD04 (GY-YE) 18 7C3T-14474-KA
10 RCD04 (BU-OG) 18 7C3T-14474-KA
11 * * N/A
12 * * N/A
13 VCA06 (WH-OG) 20 AU5T-14474-DA
14 RCA20 (BN) 20 AU5T-14474-DA
15 CE229 (VT-OG) 20 PHEV AU5T-14474-DA
16 CE420 (GY-VT) 18 7C3T-14474-KA
17 * * N/A
18 VE225 (YE-OG) 20 AU5T-14474-DA
19 VE518 (BN-WH) 20 AU5T-14474-DA
20 VE934 (GY-BN) 20 AU5T-14474-DA
21 CE347 (BU-GN) 20 AU5T-14474-DA
22 LE230 (BN-BU) 20 AU5T-14474-DA
23 CE204 (WH-BU) 22 AU5T-14474-DA
24 * * N/A
25 CRD19 (VT-WH) 20 AU5T-14474-DA
26 RRD19 (BN-VT) 20 AU5T-14474-DA
27 LE424 (YE-GN) 20 AU5T-14474-DA
28 RE407 (YE-VT) 20 AU5T-14474-DA
29 * * N/A
30 CRW13 (GN) 18 7C3T-14474-KA
31 SBB18 (BN-RD) 20 AU5T-14474-DA
32 * * N/A
33 * * N/A
34 CCB18 (YE-GY) 12 3M5T-14474-HCA
35 CCB19 (GN-BN) 12 3M5T-14474-HCA
36 ZA173 (OG) 18 97BG-14474-BBA
37 CBK02 (GN) 18 97BG-14474-BBA
38 * * N/A
39 RE259 (BU) 20 DU5T-14474-JAA
40 RE230 (WH-VT) 20 AU5T-14474-DA
