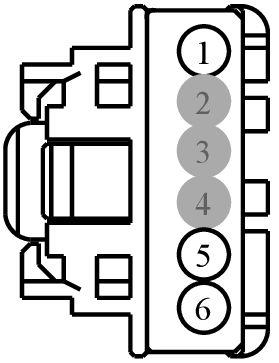

Connector End View (C9081) - INTERIOR LAMP, SECOND ROW

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9081	INTERIOR LAMP, SECOND ROW	17C712			#N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	3F2T-14474-SA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	3F2T-14474-SA
6	CLN70 (BN-VT)	22	SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1249

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BYAC

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Lamp - Dome
• Lamp - Storage Compartment - Cargo
• Motor - Heater A/C Mode Door
• Motor - Heater/AC Blend Door
• Motor - Heater/AC Inlet Door
• Switch - Hazard Warning
• Switch - Heated Seat
• Switch - Heater A/C Blower (Rear)
• Switch - Speed Control
