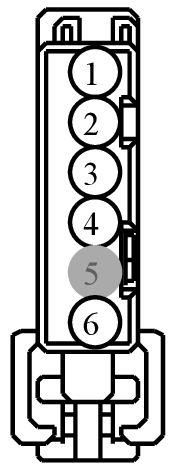

Connector End View (C9026) - RADIO TRANSCEIVER MODULE (RTM)
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C9026 | RADIO TRANSCEIVER MODULE (RTM) | 14335 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD382 (BK) | 26 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | 9U5T-14474-NA | ||||
| 2 | VPL56 (BU) | 26 | RECEIVER - REMOTE RF | 9U5T-14474-NA | ||||
| 3 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 9U5T-14474-NA | ||||
| 4 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 9U5T-14474-NA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER | 9U5T-14474-LA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1590
Service Part Number:
6U2Z-14S411-LC
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Antenna - GPS
- Module - Global Positioning
- Module - Remote Functions Receiver
- Motor - Recline (Third Row)
- Switch - Dimmer
- Switch - Hazard Warning
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Multifunction (Dimmer)
- Switch - Multifunction (Wiper)
- Switch - Reverse Park Aid
- Switch - Seat (driver)
- Switch - Seat Drivers Side (2nd Row)
- Switch - Spotlight
- Switch - Sunshade
Pigtail Kit Part Number WPT-958
Service Part Number:
6U2Z-14S411-LB
Gauge:
18 20
Pin material:
Tin & Silver
Cavities:
6
Vehicle Uses:
- Antenna - GPS
- Module - Global Positioning
