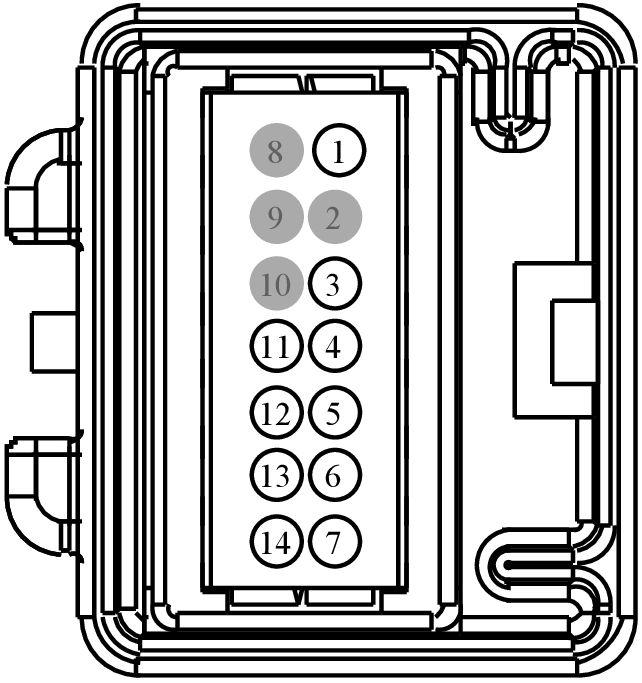

Connector End View (C9012) - AUTO-DIMMING INTERIOR MIRROR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9012	AUTO-DIMMING INTERIOR MIRROR	17C712			part# N/A	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14421-BA	EU2Z-14421-BA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP36 (BU-BN)	20	FUSE - 36 OR CIRCUIT BREAKER	Fusion	9U5T-14421-BA
1	CBP36 (YE-GY)	20	FUSE - 36 OR CIRCUIT BREAKER	MKZ	9U5T-14421-BA
2	*	*	Not Used	N/A
3	VDB27 (VT-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH	Fusion	9U5T-14421-BA
3	VDB27 (GN-VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH	MKZ	9U5T-14421-BA
4	VDB28 (GY-VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW	Fusion	9U5T-14421-BA
4	VDB28 (VT-GY)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW	MKZ	9U5T-14421-BA
5	LRD12 (BU-BN)	22	CTRL MOD. - ELECTROCHROMIC MIRROR +	Fusion	9U5T-14421-BA
5	LRD12 (BU-GY)	22	CTRL MOD. - ELECTROCHROMIC MIRROR +	MKZ	9U5T-14421-BA
6	RRD12 (BN)	22	CTRL MOD. - ELECTROCHROMIC MIRROR -	9U5T-14421-BA
7	GD383 (BK-WH)	20	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	9U5T-14421-BA
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CRD19 (VT-WH)	22	MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE +	9U5T-14421-BA
12	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14421-BA
13	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14421-BA
14	RRD19 (BN-VT)	22	MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE -	Fusion	9U5T-14421-BA
14	RRD19 (VT-WH)	22	MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE -	MKZ	9U5T-14421-BA
