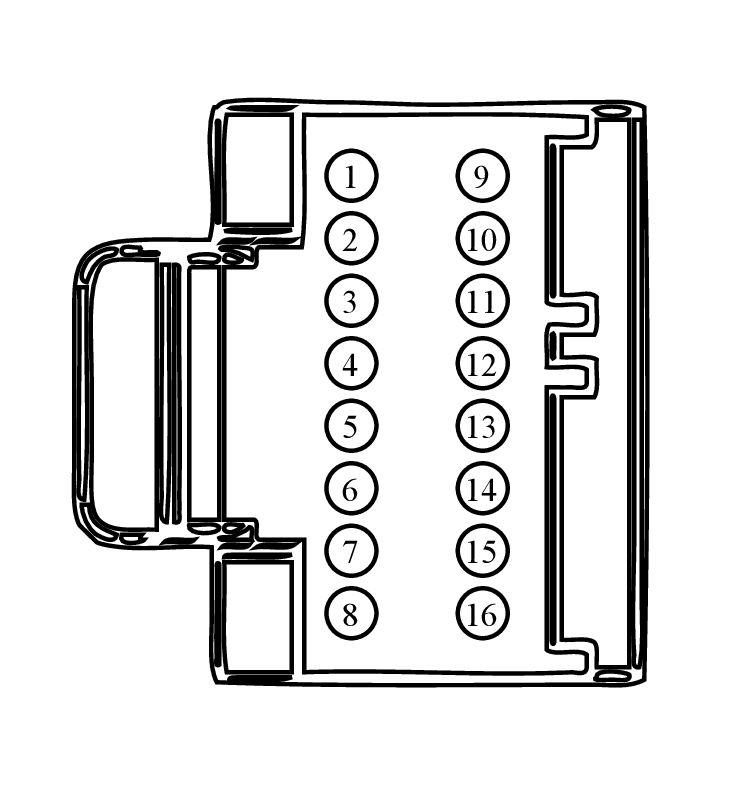

Connector End View (C4816D) - BATTERY ENERGY CONTROL MODULE (BECM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4816D	BATTERY ENERGY CONTROL MODULE (BECM)	BK	10B694	part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VYB33 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 1	PHEV	N/A
2	VYB34 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 2	PHEV	N/A
3	VYB35 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 3	PHEV	N/A
4	VYB36 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 4	PHEV	N/A
5	VYB37 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 5	PHEV	N/A
6	VYB38 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 6	PHEV	N/A
7	VYB39 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 7	PHEV	N/A
8	VYB40 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 8	PHEV	N/A
9	RYB33 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 1	PHEV	N/A
10	RYB34 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 2	PHEV	N/A
11	RYB35 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 3	PHEV	N/A
12	RYB36 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 4	PHEV	N/A
13	RYB37 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 5	PHEV	N/A
14	RYB38 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 6	PHEV	N/A
15	RYB39 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 7	PHEV	N/A
16	RYB40 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 8	PHEV	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
