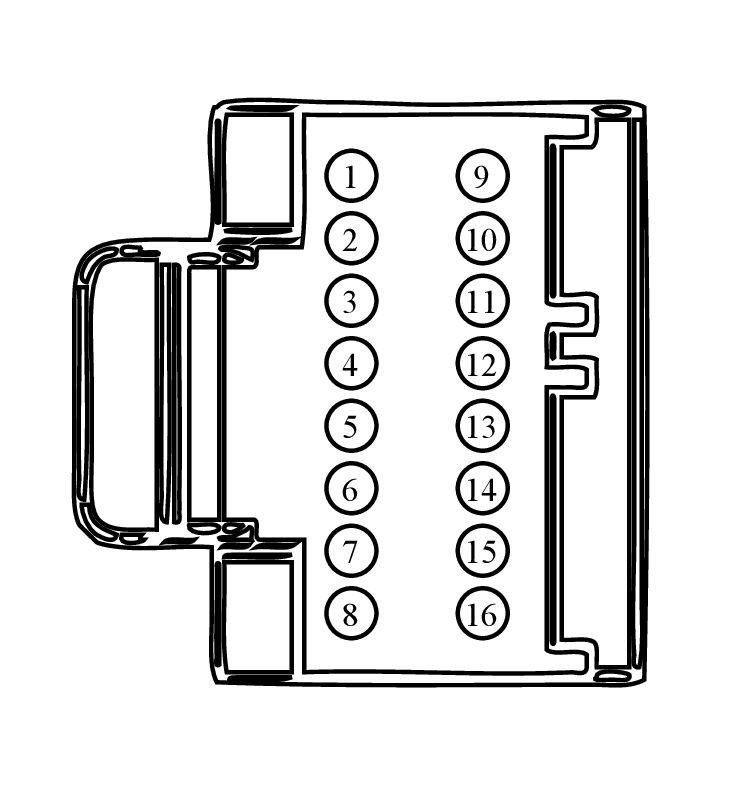

Connector End View (C4816C) - BATTERY ENERGY CONTROL MODULE (BECM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4816C	BATTERY ENERGY CONTROL MODULE (BECM)	BK	10B694	part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VYB41 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 9	PHEV	N/A
2	VYB42 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 10	PHEV	N/A
3	VYB43 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 11	PHEV	N/A
4	VYB44 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 12	PHEV	N/A
5	VYB45 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 13	PHEV	N/A
6	VYB46 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 14	PHEV	N/A
7	VYB47 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 15	PHEV	N/A
8	VYB48 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 16	PHEV	N/A
9	RYB41 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 9	PHEV	N/A
10	RYB42 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 10	PHEV	N/A
11	RYB43 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 11	PHEV	N/A
12	RYB44 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 12	PHEV	N/A
13	RYB45 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 13	PHEV	N/A
14	RYB46 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 14	PHEV	N/A
15	RYB47 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 15	PHEV	N/A
16	RYB48 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 16	PHEV	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
