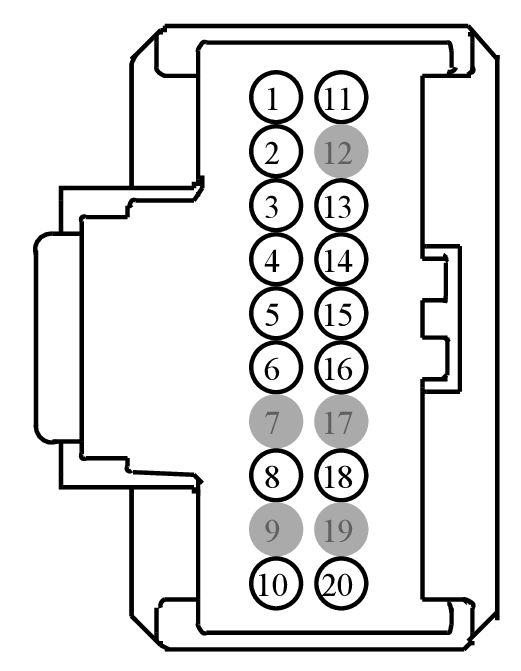

Connector End View (C4816B) - BATTERY ENERGY CONTROL MODULE (BECM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4816B |
BATTERY ENERGY CONTROL MODULE (BECM) |
14F654 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
N/A |
| 2 |
RYC01 (GN-OG) |
22 |
CS RTN |
N/A |
| 3 |
VYC02 (YE-GN) |
22 |
CS AOUT2 |
N/A |
| 4 |
LYC01 (GY-VT) |
22 |
CS VREF |
N/A |
| 5 |
CYC06 (YE-VT) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY NEGATIVE (MC-_CTRL) |
N/A |
| 6 |
CYB04 (VT-BN) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK NEG (INT-) |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
CYC03 (BN-GN) |
22 |
CONT PWR EN |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CYB03 (BN-YE) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK POS (INT+) |
N/A |
| 11 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CYC04 (VT-GY) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY PRECHARGE (PRC_CTRL) |
N/A |
| 14 |
CYC05 (WH-BU) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY POSITIVE (MC+_CTRL) |
N/A |
| 15 |
CYC08 (GY-OG) |
22 |
CTRL |
N/A |
| 16 |
CYC09 (BU-BN) |
22 |
CTRL |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
CYC07 (BN-YE) |
22 |
CTRL |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
CYD14 (GN-BN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
N/A |
