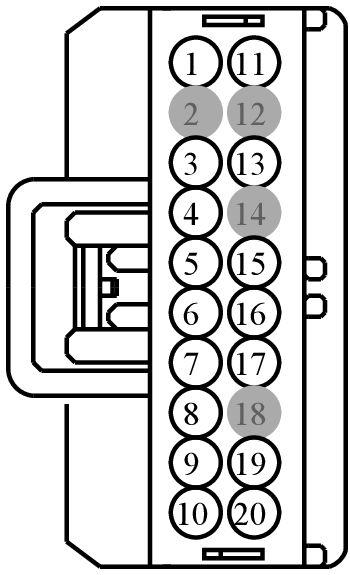

Connector End View (C4816A) - BATTERY ENERGY CONTROL MODULE (BECM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4816A |
BATTERY ENERGY CONTROL MODULE (BECM) |
BK |
14A005 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP14 (BN-RD) |
20 |
FUSE - 14 OR CIRCUIT BREAKER |
PHEV |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
PHEV |
N/A |
| 4 |
GD347 (BK-VT) |
18 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
PHEV |
N/A |
| 5 |
GD347 (BK-VT) |
18 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
PHEV |
N/A |
| 6 |
VYB18 (GN) |
26 |
CTRL MOD. - TRACTION CONTROL BATTERY # COOLING FAN PWM (PWMB) |
PHEV |
N/A |
| 7 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
PHEV |
N/A |
| 8 |
CYB10 (BU-WH) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR POSITION SENSOR + |
PHEV |
N/A |
| 9 |
CYB13 (BU-GN) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR MOTOR CLOSE (IF PLUS) |
PHEV |
N/A |
| 10 |
CBB52 (GN-WH) |
18 |
FUSE - 52 OR CIRCUIT BREAKER |
PHEV |
N/A |
| 11 |
SBP14 (BN-RD) |
20 |
FUSE - 14 OR CIRCUIT BREAKER |
PHEV |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
PHEV |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
VYB19 (GY) |
26 |
SENSOR - TRACTION CONTROL BATTERY # COOLING FAN FEEDBACK (FBB) |
PHEV |
N/A |
| 16 |
RYB07 (GY-YE) |
20 |
CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR (TXV_TEMP_RTN) |
PHEV |
N/A |
| 17 |
VYB07 (GN-WH) |
20 |
CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR (TXV_TEMP) |
PHEV |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CYB12 (YE-GN) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR MOTOR OPEN (IF PLUS) |
PHEV |
N/A |
| 20 |
CYD14 (GN-BN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
PHEV |
N/A |
