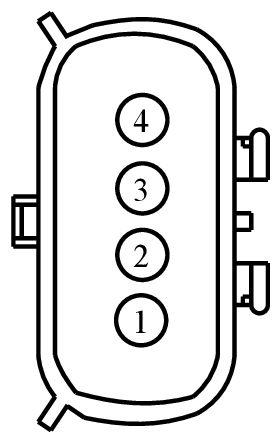

Connector End View (C4809) - HIGH MOUNT FLASHING LED, LEFT

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4809	HIGH MOUNT FLASHING LED, LEFT	BK	14A103	part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA	EU2Z-14421-CA	1.5

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAP12 (GY-RD)	18	POLICE - FLASHER REAR LEFT	BU5T-14421-HA
2	CAP29 (GY-BN)	22	POLICE - LAMP STROBE PATTERN REAR	BU5T-14421-HA
3	CAP27 (WH)	22	POLICE - LAMP STROBE SYNC REAR	BU5T-14421-HA
4	GD312 (BK)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT	BU5T-14421-HA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1432

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ABA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Lamp - Flashing LED
• Lamp - Park/Turn/Stop
• Speaker - Front
