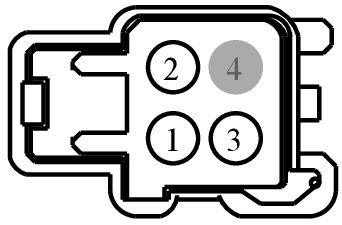

Connector End View (C4808B) - LIGHTING/SIREN CONTROL MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4808B	LIGHTING/SIREN CONTROL MODULE	14A103			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14421-ABB	Not Available
97BG-14421-AAB	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAP07 (YE)	18	SIREN - POLICE +	97BG-14421-ABB
2	RAP07 (BU-WH)	18	SIREN - POLICE -	97BG-14421-ABB
3	DAP07 (*)	18	SIREN - POLICE SHIELD	97BG-14421-AAB
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - Ash Tray
• Lamp - Courtesy - Footwell
• Module - Remote Keyless Entry
• Motor - Heater/AC Blower (Auxiliary)
• Radio - Amplifier
• Switch - Convertable Top
