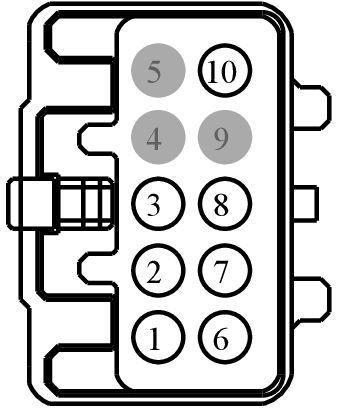

Connector End View (C4808A) - LIGHTING/SIREN CONTROL MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4808A	LIGHTING/SIREN CONTROL MODULE	GY	14A103	part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14421-ACB	Not Available
97BG-14421-ABB	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB73 (WH-BN)	14	FUSE - 73 OR CIRCUIT BREAKER	97BG-14421-ACB
2	SAP05 (VT)	20	POLICE - WIGWAG SWITCH POWER	97BG-14421-ABB
3	VAP08 (BN)	20	LOUDSPEAKER - POLICE +	97BG-14421-ABB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	97BG-14421-ABB
7	CAP10 (*)	*	POLICE - LAMP PACKAGE TRAY	97BG-14421-ABB
8	CAP12 (GY-RD)	18	POLICE - FLASHER REAR	97BG-14421-ABB
9	*	*	Not Used	N/A
10	GD312 (BK)	14	GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT	97BG-14421-ACB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1175

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-VA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

10

Vehicle Uses:

• Lamp - Park/Turn/Stop
