Connector End View (C4803) - TELEMATIC CONTROL UNIT MODULE (TCU)

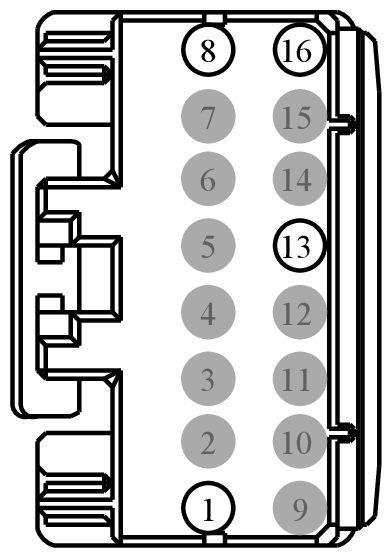

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4803	TELEMATIC CONTROL UNIT MODULE (TCU)	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
F58B-14474-BA	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP10 (YE-RD)	20	FUSE - 10 OR CIRCUIT BREAKER	F58B-14474-BA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB29 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	Fusion/PHEV	F58B-14474-BA
8	VDB29 (GN-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	MKZ	F58B-14474-BA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	GD304 (BK-GN)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT # 4TH POINT	Fusion	F58B-14474-BA
13	GD313 (BK-GN)	22	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	PHEV	F58B-14474-BA
13	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	MKZ	F58B-14474-BA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	VDB30 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	F58B-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EBA

Gauge:

18

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Module - Lighting Control
• Module - Seat Memory
