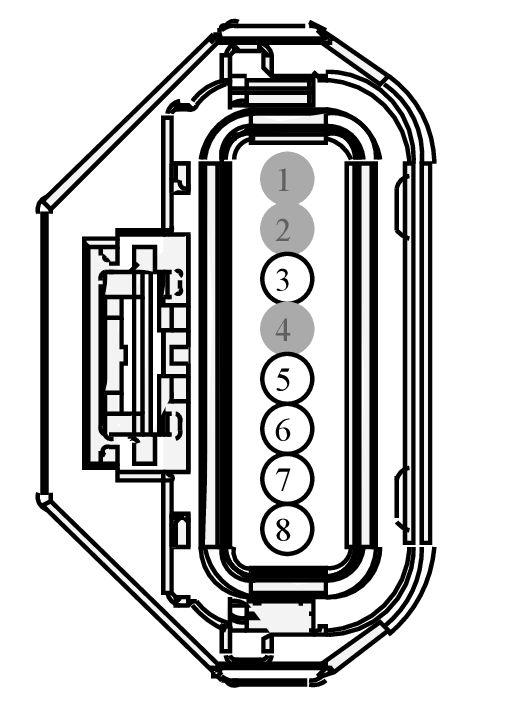

Connector End View (C4570) - SIDE OBSTACLE DETECTION CONTROL MODULE) - RIGHT (SOD-R)
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4570 | SIDE OBSTACLE DETECTION CONTROL MODULE - RIGHT (SOD-R) | 14A005 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BA | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | GD313 (BK-GN) | 20 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | 8U5T-14474-BA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | 8U5T-14474-BA | ||||
| 6 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 8U5T-14474-BA | ||||
| 7 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 8U5T-14474-BA | ||||
| 8 | GD313 (BK-GN) | 20 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | 8U5T-14474-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1434
Service Part Number:
FU2Z-14S411-ADA
Gauge:
20
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Sensor - Blind Spot Detection
Pigtail Kit Part Number WPT-1545
Service Part Number:
FU2Z-14S411-ADB
Gauge:
20
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Module - Audio Control
- Module - Side Obstacle Detection
- Sensor - Blind Spot Detection
