Connector End View (C4569) - SIDE OBSTACLE DETECTION CONTROL MODULE) - LEFT (SOD-L)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4569	SIDE OBSTACLE DETECTION CONTROL MODULE - LEFT (SOD-L)	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	8U5T-14474-BA
6	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	8U5T-14474-BA
7	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	8U5T-14474-BA
8	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT	8U5T-14474-BA

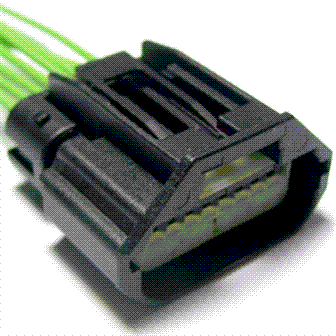

Available Pigtail Kits

Pigtail Kit Part Number WPT-1434

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ADA

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Sensor - Blind Spot Detection

Pigtail Kit Part Number WPT-1545

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ADB

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Module - Audio Control
• Module - Side Obstacle Detection
• Sensor - Blind Spot Detection
