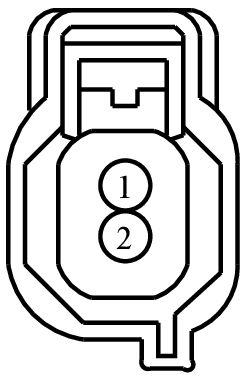

Connector End View (C4526) - APPROACHING VEHICLE AUDIBLE WARNING SPEAKER REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4526	APPROACHING VEHICLE AUDIBLE WARNING SPEAKER REAR	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VRA01 (GY-YE)	18	CTRL MOD. - APPROACHING VEHICLE AUDIBLE WARNING AUDIO OUT +	7C3T-14474-SA
2	VRA02 (VT-WH)	18	CTRL MOD. - APPROACHING VEHICLE AUDIBLE WARNING AUDIO OUT -	7C3T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Sensor - Knock
• Sensor - Speed
• Sensor - Water in Fuel
