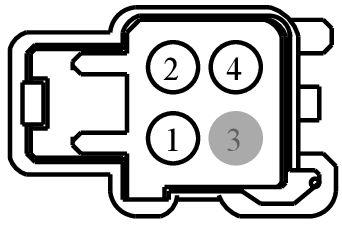

Connector End View (C4465) - DECKLID RELEASE SWITCH/LAMP ASSEMBLY

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4465	DECKLID RELEASE SWITCH/LAMP ASSEMBLY	17N400			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14421-DA	EU2Z-14421-CA	1.5

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS05 (BU-GY)	22	CTRL MOD. - PARK LAMPS 1	level 3 and 4	AU5T-14421-DA
1	CLS05 (BU-GY)	20	CTRL MOD. - PARK LAMPS 1	level 1	AU5T-14421-DA
2	CPL60 (BN-YE)	20	SWITCH - LIFTGATE GLASS RELEASE	AU5T-14421-DA
3	*	*	Not Used	N/A
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	AU5T-14421-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - Ash Tray
• Lamp - Courtesy - Footwell
• Module - Remote Keyless Entry
• Motor - Heater/AC Blower (Auxiliary)
• Radio - Amplifier
• Switch - Convertable Top
