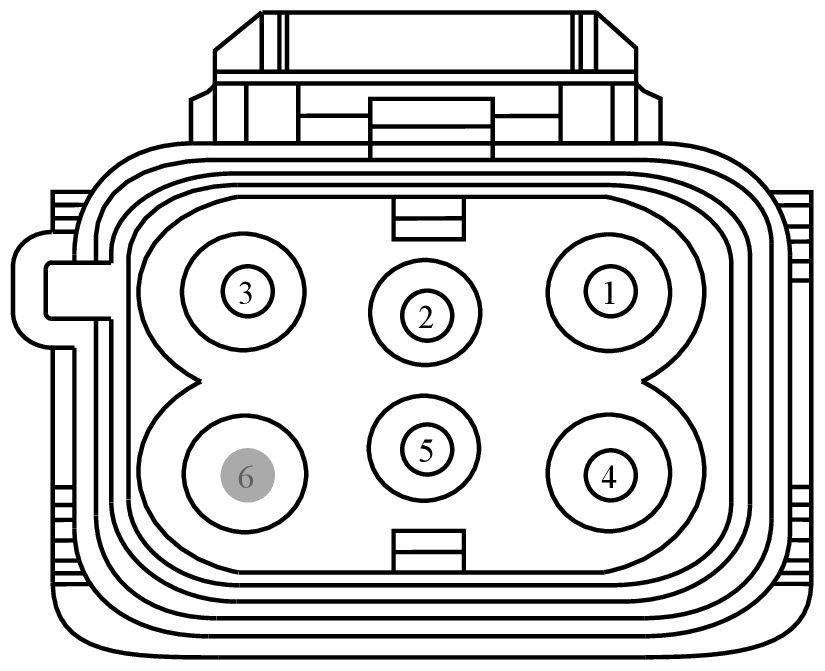

Connector End View (C4455B) - BATTERY CHARGER CONTROL MODULE (BCCM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4455B |
BATTERY CHARGER CONTROL MODULE (BCCM) |
14B322 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RYB57 (GN-YE) |
12 |
GROUND - CHARGER AC/BOND |
N/A |
| 2 |
CYB56 (WH-VT) |
20 |
PORT - HIGH VOLTAGE BATTERY CHARGER INLET # CONTROL PILOT |
N/A |
| 3 |
HYB53 (OG) |
12 |
PORT - HIGH VOLTAGE BATTERY CHARGER INLET 1 (L1) |
N/A |
| 4 |
HYB54 (OG) |
12 |
PORT - HIGH VOLTAGE BATTERY CHARGER INLET 2 (L2) |
N/A |
| 5 |
CYB55 (YE-GY) |
20 |
PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
