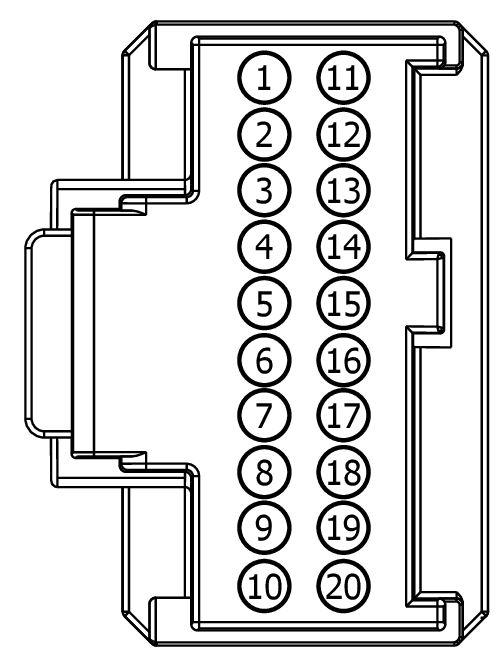

Connector End View (C4452A) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4452A	AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE	14B644			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-DA	DU2Z-14474-AA	0.64
9U5T-14474-EA	DU2Z-14474-AA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RME07 (WH-BN)	20	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -	9U5T-14474-DA
2	RME28 (BU-WH)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP - (OBSOLETE)	9U5T-14474-DA
	3	RME10 (WH-OG)	20	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -	9U5T-14474-DA
	4	RMEB6 (YE-GY)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR OR LEFT REAR DOOR MIDRANGE 2 - (OBSOLETE)	9U5T-14474-EA
	5	RME01 (GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1	9U5T-14474-EA
	6	RME29 (BU-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP - (OBSOLETE)	9U5T-14474-DA
	7	RME02 (YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 1 -	9U5T-14474-EA
	8	RME09 (BN-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -	9U5T-14474-EA
9	RME06 (GY-YE)	20	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -	20 Speaker	9U5T-14474-DA
9	RME28 (BN-GN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP - (OBSOLETE)	14 Speaker	9U5T-14474-DA
10	RME01 (GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 -	14 Speaker	9U5T-14474-EA
10	RMEB8 (BN-GN)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR OR RIGHT REAR DOOR MIDRANGE 2 - (OBSOLETE)	20 Speaker	9U5T-14474-EA
	11	VME07 (WH)	20	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +	9U5T-14474-DA
	12	VME28 (GN-WH)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP + (OBSOLETE)	9U5T-14474-DA
	13	VME10 (WH-VT)	20	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +	9U5T-14474-DA
	14	VMEB6 (GN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR OR LEFT REAR DOOR MIDRANGE 2 + (OBSOLETE)	9U5T-14474-EA
	15	VME01 (GN-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 +	9U5T-14474-EA
	16	VME29 (GN-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP + (OBSOLETE)	9U5T-14474-DA
	17	VME02 (VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 1 +	9U5T-14474-EA
	18	VME09 (WH-GN	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +	9U5T-14474-EA
19	VME06 (GN)	20	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +	20 Speaker	9U5T-14474-DA
19	VME28 (BN-VT)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP + (OBSOLETE)	14 Speaker	9U5T-14474-DA
20	VME01 (GN-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 +	14 Speaker	9U5T-14474-EA
20	VMEB8 (GY)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR OR RIGHT REAR DOOR MIDRANGE 2 + (OBSOLETE)	20 Speaker	9U5T-14474-EA

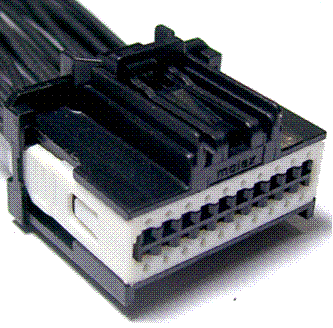

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

20

Pin material:

Tin

Cavities:

20

Vehicle Uses:

• Camera - Reverse Park Aid
• Module - Image Processing
• Radio - Amplifier
