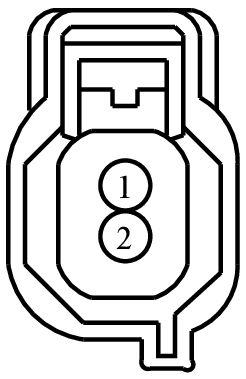

Connector End View (C4446) - SUBWOOFER, RIGHT

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4446	SUBWOOFER, RIGHT	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME73 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 +	7C3T-14474-SA
2	RME73 (VT-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 -	7C3T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Sensor - Knock
• Sensor - Speed
• Sensor - Water in Fuel
