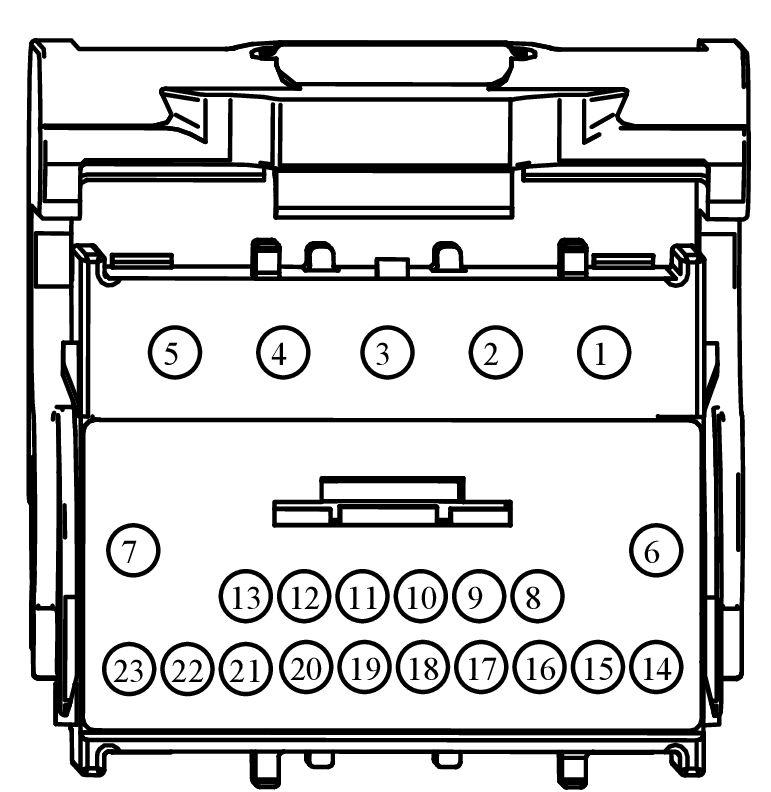

Connector End View (C4396C) - VEHICLE DYNAMICS MODULE (VDM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4396C	VEHICLE DYNAMICS MODULE (VDM)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA	DU2Z-14474-EA	2.8
9U5T-14474-MA	DU2Z-14474-BA	0.64
97BG-14474-BCA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RCD03 (VT-BN)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT LEFT -	97BG-14474-BBA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CCD04 (GY-YE)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT +	97BG-14474-BBA
5	RCD04 (BU-OG)	18
6	CCD03 (WH-BU)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT LEFT +	97BG-14474-BBA
7	CBP36 (BU-BN)	14	FUSE - 36 OR CIRCUIT BREAKER	97BG-14474-BCA
8	*	*	Not Used	N/A
	9	LCD23 (GN-OG)	18	CTRL MOD. - CCD # SENSORS 2 +	9U5T-14474-MA
	10	*	*	Not Used	N/A
	11	*	*	Not Used	N/A
	12	VCD10 (BN)	18	SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) FRONT LEFT	9U5T-14474-MA
	13	*	*	Not Used	N/A
	14	*	*	Not Used	N/A
	15	LCD02 (YE-GN)	18	CTRL MOD. - CCD # SENSORS +	9U5T-14474-MA
	16	*	*	Not Used	N/A
	17	RCD02 (GN-BN)	18	CTRL MOD. - CCD # SENSORS -	9U5T-14474-MA
	18	*	*	Not Used	N/A
	19	*	*	Not Used	N/A
	20	*	*	Not Used	N/A
	21	*	*	Not Used	N/A
	22	VCD11 (GY-VT)	18	SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) FRONT RIGHT	9U5T-14474-MA
	23	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1454

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AMA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

23

Vehicle Uses:

• Module - Remote Functions Actuator
• Module - Remote Functions Receiver
• Module - Remote Keyless Entry
• Valve - Damper
