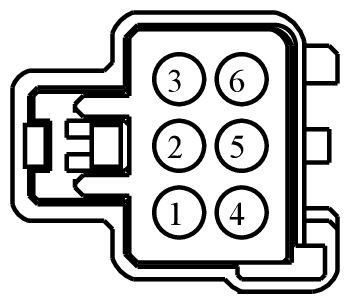

Connector End View (C4360) - PARKING AID CAMERA REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4360	PARKING AID CAMERA REAR	17N400			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available
AU5T-14421-DA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	AU5T-14421-DA
2	RMP19 (BN-VT)	20	CAMERA - PARKING AID REAR VIDEO -	AU5T-14421-DA
3	VMP19 (WH-GN)	20	CAMERA - PARKING AID REAR VIDEO +	AU5T-14421-DA
4	VDN04 (VT-WH)	20	CTRL MOD. - LIN BUS # BCM 4	AU5T-14421-DA
5	DMP19 (*)	20	CAMERA - PARKING AID REAR VIDEO D	97BG-14421-AAB
6	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	AU5T-14421-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1299

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NBB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Inverter - DC to AC
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Courtesy - Footwell
• Lamp - License
• Lamp - Park/Turn/Stop
• Lamp - Top Finish Panel
• Mating Connector WPT-962
• Motor - Adjustable Pedal
• Switch - Gear Shift Select/Neutral Safety
• Switch - Multifunction
