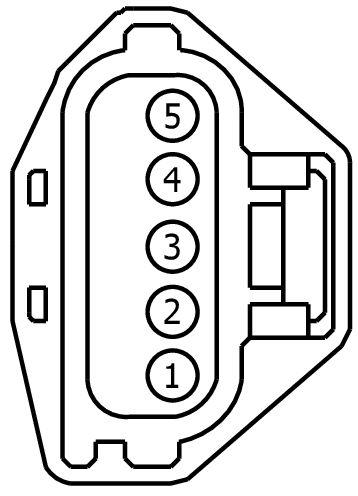

Connector End View (C4339) - LUGGAGE COMPARTMENT LID POWER STRIKER MOTOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4339	LUGGAGE COMPARTMENT LID POWER STRIKER MOTOR	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPR71 (GY-BN)	22	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (+)	97BG-14474-ADA
2	CPR61 (BN)	22	CTRL MOD. - POWER LIFTGATE # CINCH +	97BG-14474-ADA
3	CPR65 (BU-GN)	22	LATCH - LIFTGATE # LATCH SWITCH FULL	97BG-14474-ADA
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	97BG-14474-ADA
5	CPR72 (GN-BU)	22	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (-)	97BG-14474-ADA

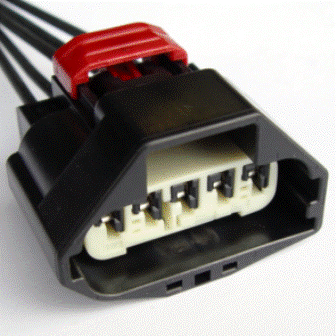

Available Pigtail Kits

Pigtail Kit Part Number WPT-738

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BFAA

Gauge:

16

Pin material:

Tin

Cavities:

5

Vehicle Uses:

• Relay - Torque On Demand (TOD)
