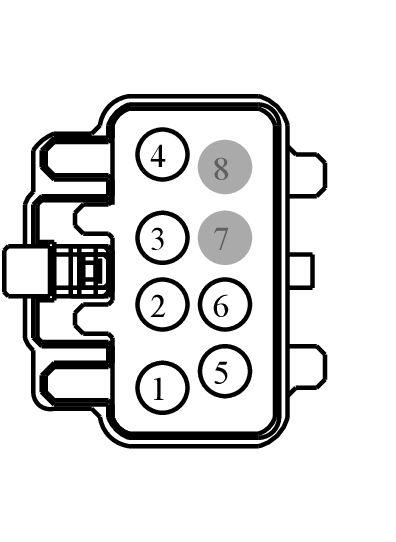

Connector End View (C4332) - POWER LUGGAGE COMPARTMENT LID MOTOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4332	POWER LUGGAGE COMPARTMENT LID MOTOR	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14421-DA	EU2Z-14421-CA	1.5
97BG-14421-BAA	EU2Z-14421-EA	2.8

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPR58 (GN-OG)	22	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # CLOSE (IF POSITIVE)	97BG-14421-BAA
2	CPR55 (GN-BU)	22	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR POWER	AU5T-14421-DA
3	RPR55 (WH-BU)	22	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR RETURN	AU5T-14421-DA
4	CPR57 (GN-WH)	22	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # OPEN (IF POSITIVE)	97BG-14421-BAA
5	VPR53 (BU-WH)	22	SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 1 (OPEN IF LEAD)	AU5T-14421-DA
6	VPR54 (BU-BN)	22	SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 2 (CLOSE IF LEAD)	AU5T-14421-DA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A

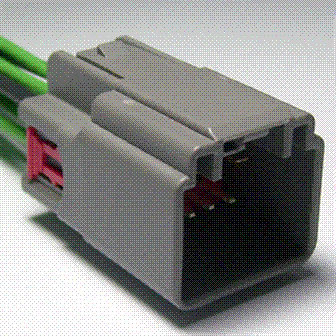

Available Pigtail Kits

Pigtail Kit Part Number WPT-1439

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AKA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

8

Vehicle Uses:

• Motor - Decklid / Liftgate
