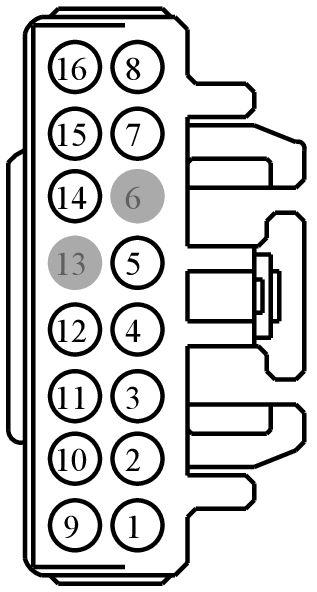

Connector End View (C4326B) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4326B	AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14474-CA	Not Available
AU5T-14474-BA	Not Available
DU5T-14474-DA	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME10 (WH-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +	AU5T-14474-CA
2	VME12 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +	AU5T-14474-CA
3	VME01 (GN-VT)	16	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 +	AU5T-14474-CA
4	VME02 (VT)	16	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 1 +	AU5T-14474-CA
5	SME23 (RD)	26	CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 1	DU5T-14474-DA
6	*	*	Not Used	N/A
7	SBP05 (GY-RD)	14	FUSE - 5 OR CIRCUIT BREAKER	AU5T-14474-BA
8	SBP28 (GN-RD)	14	FUSE - 28 OR CIRCUIT BREAKER	AU5T-14474-BA
9	RME10 (WH-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -	AU5T-14474-CA
10	RME12 (BN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -	AU5T-14474-CA
11	RME01 (GY)	16	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 -	AU5T-14474-CA
12	RME02 (YE)	16	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 1 -	AU5T-14474-CA
13	*	*	Not Used	N/A
14	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	AU5T-14474-CA
15	GD304 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL LEFT # 4TH POINT	PHEV	AU5T-14474-CA
15	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	Fusion	AU5T-14474-CA
16	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	AU5T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-959

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BDAB

Gauge:

14

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Radio - Amplifier
