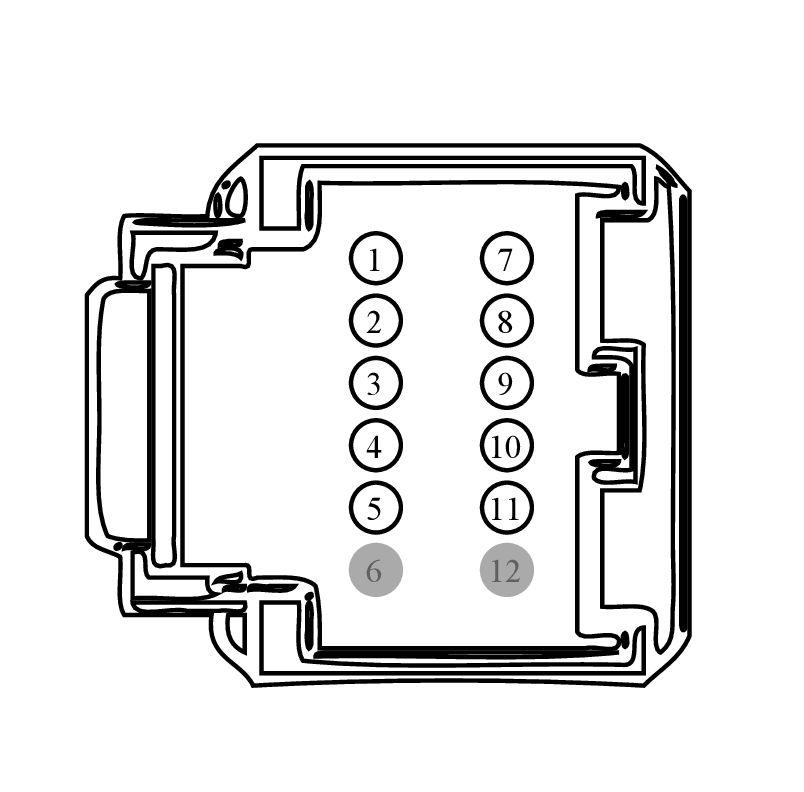

Connector End View (C4237D) - BATTERY ENERGY CONTROL MODULE (BECM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4236D |
HIGH VOLTAGE BATTERY JUNCTION BOX |
14B322 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VYB38 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 6 |
| 2 |
VYB39 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 7 |
| 3 |
VYB40 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 8 |
| 4 |
VYB41 (BK) |
5 |
THERMISTOR - HIGH VOLTAGE BATTERY 10 |
| 5 |
VYB42 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 10 |
| 6 |
* |
* |
Not Used |
| 7 |
RYB38 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 6 |
| 8 |
RYB39 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 7 |
| 9 |
RYB40 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 8 |
| 10 |
RYB41 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 9 |
| 11 |
RYB42 (BK) |
22 |
THERMISTOR - HIGH VOLTAGE BATTERY 10 |
| 12 |
* |
* |
Not Used |
