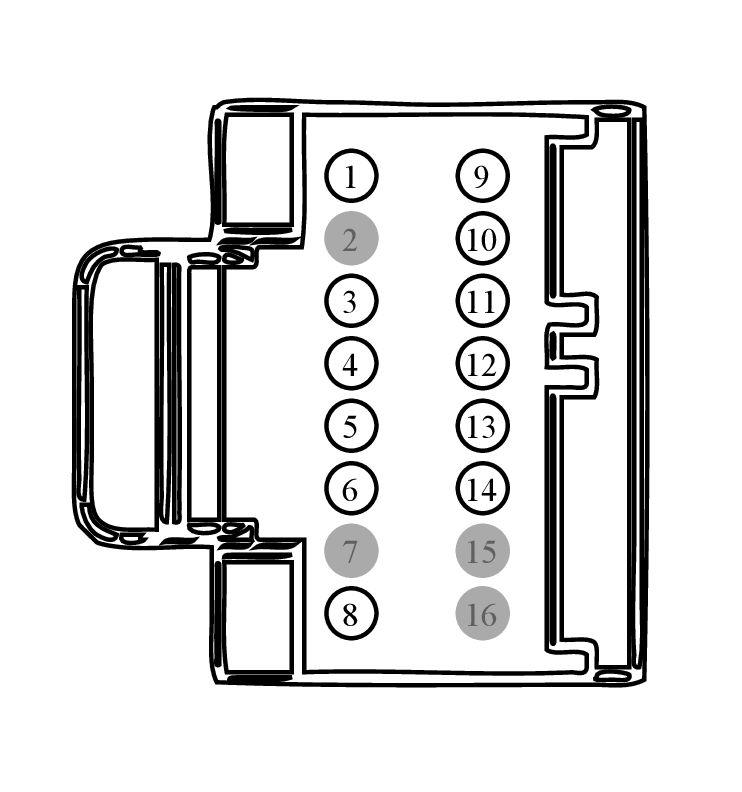

Connector End View (C4237B) - BATTERY ENERGY CONTROL MODULE (BECM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4237B	BATTERY ENERGY CONTROL MODULE (BECM)	14F654			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LYC01 (GY-VT)	22	CS VREF	N/A
2	*	*	Not Used	N/A
3	RYC01 (GN-OG)	22	CS RTN	N/A
4	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
5	CYC06 (YE-VT)	22	CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY NEGATIVE (MC-_CTRL)	N/A
6	CYB04 (VT-BN)	22	CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK NEG (INT-)	N/A
7	*	*	Not Used	N/A
8	CYC03 (BN-GN)	22	CONT PWR EN	N/A
9	VYC02 (YE-GN)	22	CS AOUT2	N/A
10	CYB03 (BN-YE)	22	CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK POS (INT+)	N/A
11	CYD14 (GN-BN)	22	CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP)	N/A
12	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
13	CYC04 (VT-GY)	22	CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY PRECHARGE (PRC_CTRL)	N/A
14	CYC05 (WH-BU)	22	CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY POSITIVE (MC+_CTRL)	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
