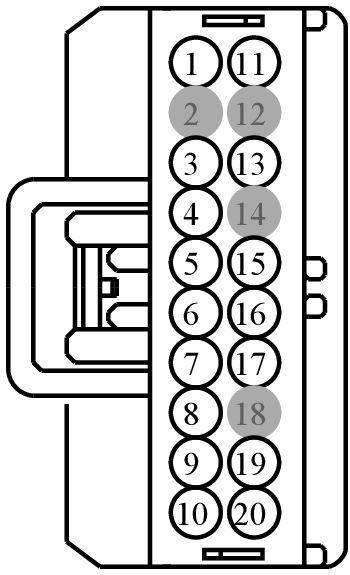

Connector End View (C4237A) - BATTERY ENERGY CONTROL MODULE (BECM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4237A	BATTERY ENERGY CONTROL MODULE (BECM)	14A005			part# N/A	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA\|9U5T-14474-MA	Not Available
9U5T-14474-LA\|9U5T-14474-NA	Not Available
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-MA\|9U5T-14474-NA	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP14 (BN-RD)	20	FUSE - 14 OR CIRCUIT BREAKER	9U5T-14474-MA
2	*	*	Not Used	N/A
3	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	MKZ/PHEV	9U5T-14474-LA\|9U5T-14474-NA
3	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	Fusion	9U5T-14474-LA\|9U5T-14474-NA
4	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT	MKZ	9U5T-14474-MA
4	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT	Fusion	9U5T-14474-MA
4	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT	PHEV	9U5T-14474-MA
5	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT	MKZ	9U5T-14474-MA
5	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT	Fusion	9U5T-14474-MA
5	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT	PHEV	9U5T-14474-MA
6	VYB18 (GN)	26	CTRL MOD. - TRACTION CONTROL BATTERY # COOLING FAN PWM	Fusion	9U5T-14474-MA\|9U5T-14474-NA
6	VYB18 (WH-GN)	18	CTRL MOD. - TRACTION CONTROL BATTERY # COOLING FAN PWM	MKZ	9U5T-14474-MA\|9U5T-14474-NA
7	CR167 (YE-VT)	22	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL	Fusion	9U5T-14474-LA\|9U5T-14474-MA
7	CR167 (YE-VT)	18	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL	MKZ	9U5T-14474-LA\|9U5T-14474-MA
8	CYB10 (BU-WH)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR POSITION SENSOR +	PHEV	9U5T-14474-LA
9	CYB13 (BU-GN)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR MOTOR CLOSE (IF PLUS)	PHEV	9U5T-14474-LA
10	CBB52 (GN-WH)	20	FUSE - 52 OR CIRCUIT BREAKER	Fusion	9U5T-14474-MA
10	CBB52 (GN-WH)	18	FUSE - 52 OR CIRCUIT BREAKER	MKZ	9U5T-14474-MA
11	SBP14 (BN-RD)	20	FUSE - 14 OR CIRCUIT BREAKER	9U5T-14474-MA
12	*	*	Not Used	N/A
13	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	Fusion	9U5T-14474-LA\|9U5T-14474-NA
13	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	MKZ	9U5T-14474-LA\|9U5T-14474-NA
14	*	*	Not Used	N/A
15	VYB19 (GY)	26	SENSOR - TRACTION CONTROL BATTERY # COOLING FAN FEEDBACK	PHEV	9U5T-14474-MA\|9U5T-14474-NA
15	VYB19 (GY-VT)	18	SENSOR - TRACTION CONTROL BATTERY # COOLING FAN FEEDBACK	MKZ	9U5T-14474-MA\|9U5T-14474-NA
15	VYB19 (VT)	26	SENSOR - TRACTION CONTROL BATTERY # COOLING FAN FEEDBACK	Fusion	9U5T-14474-MA\|9U5T-14474-NA
16	RYB07 (GY-YE)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR	MKZ	9U5T-14474-LA\|9U5T-14474-MA
16	RYB07 (GY-YE)	20	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR	Fusion/PHEV	9U5T-14474-LA\|9U5T-14474-MA
17	VYB07 (GN-WH)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR	MKZ	9U5T-14474-LA\|9U5T-14474-MA
17	VYB07 (GN-WH)	20	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR	Fusion/PHEV	9U5T-14474-LA\|9U5T-14474-MA
18	*	*	Not Used	N/A
19	CYB12 (YE-GN)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR MOTOR OPEN (IF PLUS)	PHEV	9U5T-14474-LA
20	CYD14 (GN-BN)	22	CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP)	PHEV	9U5T-14474-LA
