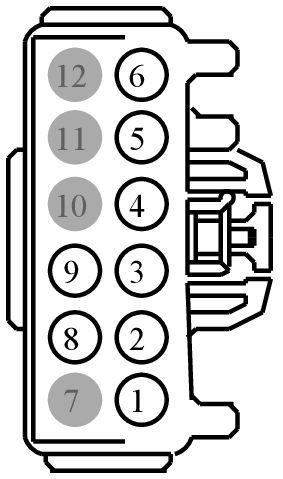

Connector End View (C4174A) - REAR GATE TRUNK MODULE (RGTM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4174A	REAR GATE TRUNK MODULE (RGTM)	14A005			part# N/A	See Below

Terminal Part Number	Service Part Number	Size
97BG-14474-BCA	DU2Z-14474-EA	2.8
97BG-14474-BAA	DU2Z-14474-EA	2.8

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD347 (BK-VT)	12	GROUND - PILLAR C OR QUARTER PANEL LEFT	97BG-14474-BCA
2	CPR61 (BN)	22	CTRL MOD. - POWER LIFTGATE # CINCH +	97BG-14474-BAA
3	CPR71 (GY-BN)	22	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (+)	97BG-14474-BAA
4	SBB80 (VT-RD)	12	FUSE - 80 OR CIRCUIT BREAKER	97BG-14474-BCA
5	CPR57 (GN-WH)	22	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # OPEN (IF POSITIVE)	97BG-14474-BAA
6	CPR58 (GN-OG)	22	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # CLOSE (IF POSITIVE)	97BG-14474-BAA
7	*	*	Not Used	N/A
8	CPL10 (GN-WH)	22	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE	97BG-14474-BAA
9	SBP10 (YE-RD)	20	FUSE - 10 OR CIRCUIT BREAKER	97BG-14474-BAA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-396

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BKA

Gauge:

12

Pin material:

Tin

Cavities:

12

Vehicle Uses:

• Module - Liftgate
• Switch - Headlamp
• Switch - Seat (driver)
• Switch - Seat (passenger)
