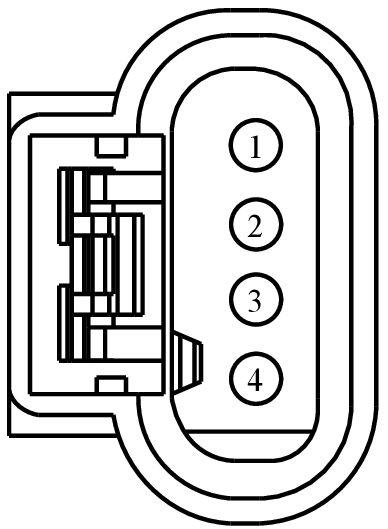

Connector End View (C4089) - FUEL FILLER DOOR LATCH MOTOR
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4089 | FUEL FILLER DOOR LATCH MOTOR | 14A005 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-NA | Not Available | |
| AU5T-14474-MA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB14 (VT-OG) | 20 | FUSE - 14 OR CIRCUIT BREAKER | AU5T-14474-NA | ||||
| 1 | CPL51 (BU-GN) | 16 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | MKZ China | AU5T-14474-MA | |||
| 2 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | AU5T-14474-NA | ||||
| 3 | CE204 (WH-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL CAP OFF INDICATOR LAMP (FCIL) | AU5T-14474-NA | ||||
| 4 | CPL11 (GY-BN) | 16 | CTRL MOD. - DOOR LOCK # ALL LOCK | MKZ China | AU5T-14474-MA | |||
| 4 | GD347 (BK-VT) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT | AU5T-14474-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1309
Service Part Number:
CU2Z-14S411-AYA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Motor - Active Grill Shutter
