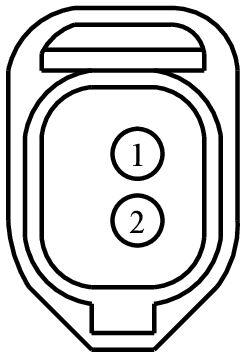

Connector End View (C4017) - REVERSING LAMP LH
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4017 | REVERSING LAMP LH | 17N400 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS28 (BU-WH) | 22 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | 97BG-14474-ADA | ||||
| 2 | GD347 (BK-VT) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT | 97BG-14474-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1460
Service Part Number:
1U2Z-14S411-BEC
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Fog/Driving
- Lamp - Front Cornering/Turn
- Lamp - Front Park
- Lamp - Front Turn
- Lamp - Front Turn/ Marker
- Lamp - Headlamp - High/Low Beam
- Lamp - License
- Lamp - Reverse
- Lamp - Running Board
- Lamp - Side Marker
- Lamp - Stop/Park
- Lamp - Under Hood
Pigtail Kit Part Number WPT-1204
Service Part Number:
1U2Z-14S411-BEB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Fog/Driving
- Lamp - Front Park
- Lamp - Front Turn
- Lamp - Front Turn/ Marker
- Lamp - License
- Lamp - Reverse
- Lamp - Running Board
- Lamp - Side Marker
- Lamp - Stop/Park
- Lamp - Under Hood
