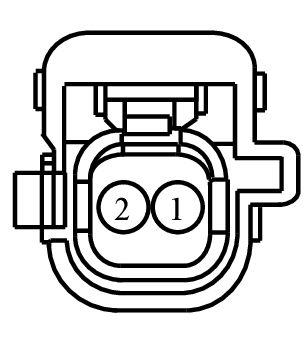

Connector End View (C4003) - INLINE
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C4003 | INLINE | 14B322 14B322 | Not Available | |||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| NOT ASSIGNED | Not Available |
MALE
Harness
14B322
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CYB03 (BN-YE) | 20 | N/A | |||
| 2 | CYB03 (BN-YE) | 20 | N/A | |||
FEMALE
Harness
14B322
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CYB03 (BN-YE) | 20 | N/A | |||
| 2 | CYB03 (BN-YE) | 20 | N/A | |||
