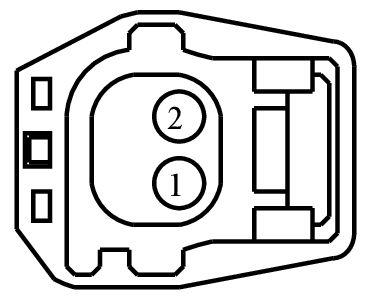

Connector End View (C3655) - HYDRAULIC SOLENOID VALVE, LEFT REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3655	HYDRAULIC SOLENOID VALVE, LEFT REAR	2C054			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCD05 (GN-BU)	18	CTRL MOD. - CCD # SOLENOID DAMPER REAR LEFT +	97BG-14474-AEA
2	RCD05 (YE-BU)	18	CTRL MOD. - CCD # SOLENOID DAMPER REAR LEFT -	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-273

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-GVA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Heated Thermostat
