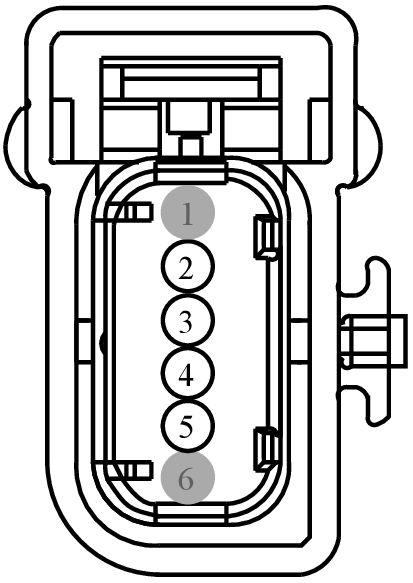

Connector End View (C3646) - SEATBELT BUCKLE ASSEMBLY, 2ND ROW

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3646	SEATBELT BUCKLE ASSEMBLY, 2ND ROW	14A547			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CR206 (BN)	20	SENSOR - SEATBELT BUCKLE (SEATBELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD	8U5T-14474-BA
3	RR137 (BU-GY)	20	CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -	8U5T-14474-BA
4	CR204 (VT)	20	SENSOR - SEATBELT BUCKLE (SEATBELT REMINDER) ROW 2 DRIVER SIDE	8U5T-14474-BA
5	RR137 (BU-GY)	20	CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -	8U5T-14474-BA
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1329

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-EA

Gauge:

20

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Antenna - Keyless Entry
• Handle - Decklid
• Switch - Keyless Entry
• Switch - Seatbelt
