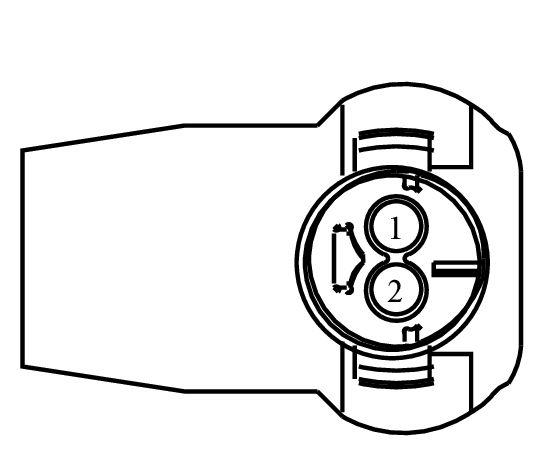

Connector End View (C3644) - SEATBELT INFLATOR, 2ND ROW, LEFT

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3644	SEATBELT INFLATOR, 2ND ROW, LEFT	14A547			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR180 (YE)	20	CTRL MOD. - INFLATABLE SEATBELT ROW 2 DRIVER +	NA
2	RR180 (BN-GN)	20	CTRL MOD. - INFLATABLE SEATBELT ROW 2 DRIVER -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1226

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BJA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
