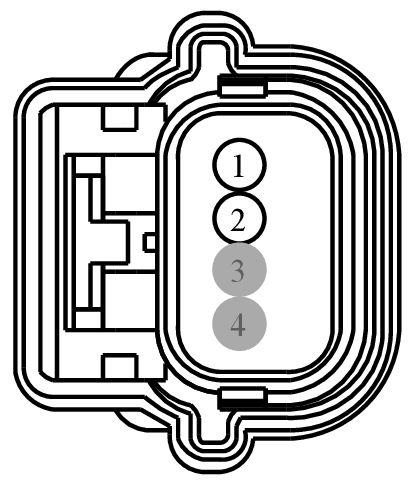

Connector End View (C3513) - PASSIVE ANTI-THEFT SYSTEM FRONT ANTENNA

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3513	PASSIVE ANTI-THEFT SYSTEM FRONT ANTENNA	14B560/14B079			Part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
*8U5T-14474-BA	Not Available
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK05 (BN-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +	14B079 - MKZ	*8U5T-14474-BA
1	VPK05 (BN-GN)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +	14B560 - Fusion	8U5T-14474-BA
2	RPK05 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -	14B079 - MKZ	*8U5T-14474-BA
2	RPK05 (OG-YE)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -	14B560 - Fusion	8U5T-14474-BA
3	*	*	Not Used	N/A
	4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1569

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGB

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Motor - Active Grill Shutter
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
• Sensor - Gear Neutral

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
