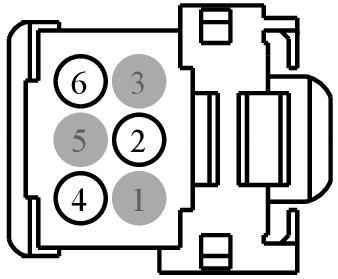

Connector End View (C3433) - SHIFT INTERLOCK OVERRIDE SWITCH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3433	SHIFT INTERLOCK OVERRIDE SWITCH	none	14401	part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	- ()	*	Not Used	N/A
2	GD383 (BK-WH)	20	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	N/A
3	- ()	*	Not Used	N/A
4	CET82 (GN-VT)	20	SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1)	N/A
5	- ()	*	Not Used	N/A
6	CET83 (BU-OG)	20	SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1164

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-JB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Hazard Warning
• Switch - Heated Back Light (Rear Defrost)
• Switch - Power Liftgate
• Switch - Reverse Park Aid
• Switch - Start/Stop
• Switch - Sunshade
• Switch - Traction Control
