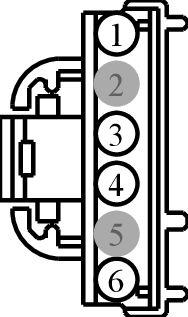

Connector End View (C3429) - AC OUTLET

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3429	AC OUTLET	14B079			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	9U5T-14474-MA
2	*	*	Not Used	N/A
3	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	Fusion	9U5T-14474-LA
4	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	Fusion	9U5T-14474-LA
5	*	*	Not Used	N/A
6	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Lamp - Dimmer Switch
• Module - Front Interface
• Switch - Adjustable Pedal
• Switch - Dimmer
• Switch - Dimmer (Instrument Panel)
• Switch - Message Center
• Switch - Power Window - Passenger (Front)
