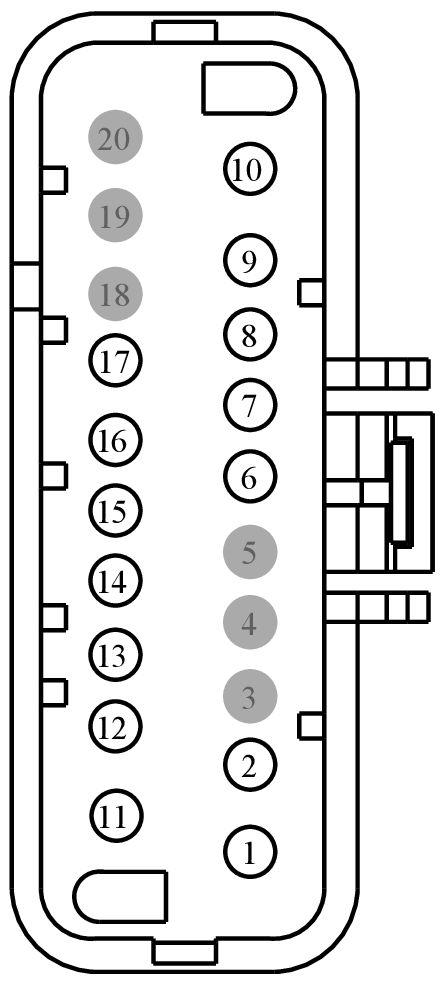

Connector End View (C3387) - SEAT CONTROL SWITCH, DRIVER SIDE FRONT

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3387	SEAT CONTROL SWITCH, DRIVER SIDE FRONT	14D231			part# N/A	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS64 (BN-VT)	20	SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL DEFLATE	MKZ 4-way lumbar	NA
1	CPS96 (WH-OG)	20	SWITCH - SEAT MULTICONTOUR # LESS (LLS)	10- way power seat with multi contour	NA
2	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP	MKZ 4-way lumbar	NA
2	CPS95 (GN-VT)	20	SWITCH - SEAT MULTICONTOUR # MORE (LMR)	10- way power seat with multi contour	NA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE	NA
7	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	MKZ	NA
7	CPS30 (VT-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	Fusion	NA
8	CPS65 (WH-GN)	20	SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL INFLATE	NA
9	CPS29 (WH-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	Fusion	NA
9	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	MKZ	NA
10	CBX04 (WH-RD)	16	POWER - SEAT # MEMORY MODULE HIGH CURRENT	with memory	NA
10	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	MKZ	NA
10	CBX05 (VT-RD)	16	POWER - SEAT # POWER SEAT SWITCH	Fusion	NA
11	GD906 (BK-GY)	16	GROUND - SEAT # MEMORY MODULE HIGH CURRENT	NA
12	CPS27 (BU-BN)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	Fusion	NA
12	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	MKZ	NA
13	CPS26 (YE-BU)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	Fusion	NA
13	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	MKZ	NA
14	CPS28 (GN)	20	SWITCH - SEAT ADJUST. DRIVER REARWARD	Fusion	NA
14	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD	MKZ	NA
15	CPS23 (GN-VT)	20	SWITCH - SEAT ADJUST. DRIVER FORWARD	Fusion	NA
15	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD	MKZ	NA
16	CPS25 (WH-VT)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	Fusion	NA
16	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	MKZ	NA
17	CPS24 (GY)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	Fusion	NA
17	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	MKZ	NA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
