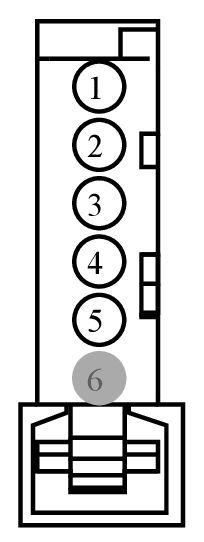

Connector End View (C3360) - ACTIVE PARK ASSIST SWITCH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3360 |
ACTIVE PARK ASSIST SWITCH |
14B560 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-NA |
DU2Z-14474-BA |
0.64 |
| 9U5T-14474-LA |
DU2Z-14474-BA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CMP02 (BU) |
26 |
CTRL MOD. - PARKING AID # INDICATOR STATUS |
with front parking aid |
9U5T-14474-NA |
| 1 |
CE469 (WH/BN) |
22 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
without front parking aid |
N/A |
| 2 |
CET59 (GY-VT) |
22 |
SWITCH - HILL DESCENT CONTROL |
without front parking aid |
9U5T-14474-LA |
| 2 |
CMP32 (GN) |
22 |
SWITCH - ACTIVE PARK ASSIST (AUTOPARK) |
with front parking aid |
9U5T-14474-NA |
| 3 |
GD214 (BK) |
26 |
GROUND - INSTRUMENT PANEL STRUCTURE |
9U5T-14474-NA |
| 4 |
CMP18 (GN-WH) |
22 |
SWITCH - PARKING AID |
with front parking aid |
9U5T-14474-NA |
| 4 |
CE469 (WH) |
22 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
without front parking aid |
N/A |
| 5 |
VLN04 (VT) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
9U5T-14474-NA |
| 6 |
* |
* |
Not Used |
N/A |
