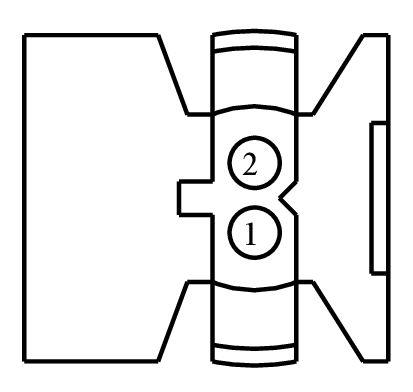

Connector End View (C3336) - PASSENGER SEATBELT RETRACTOR PRETENSIONER

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3336	PASSENGER SEATBELT RETRACTOR PRETENSIONER	14A005			#N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR171 (VT-GN)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) +	NA
2	RR171 (GY)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1230

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BPA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Squib - Airbag (Passenger)
