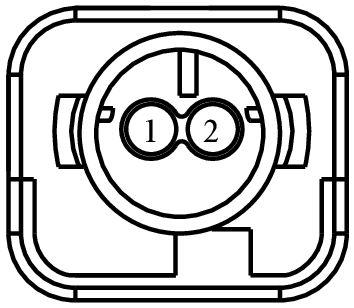

Connector End View (C3329) - PASSENGER SIDE AIR CURTAIN MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3329	PASSENGER SIDE AIR CURTAIN MODULE	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR111 (BN-WH)	18	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE +	NA
2	RR111 (YE-VT)	18	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1228

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BMA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
