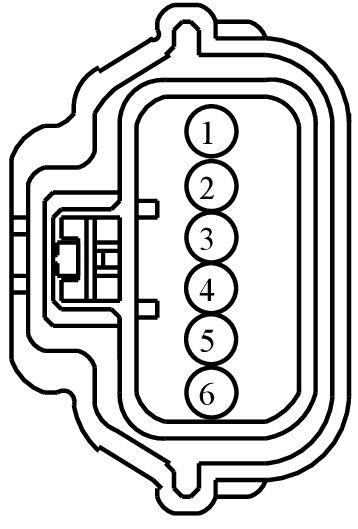

Connector End View (C3285) - OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3285 |
OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM) |
14D230 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-MA |
DU2Z-14474-BA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBX02 (BN-RD) |
20 |
POWER - SEAT # RUN/START OCCUPANT CLASSIFICATION MODULE |
9U5T-14474-MA |
| 2 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
9U5T-14474-MA |
| 3 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
9U5T-14474-MA |
| 4 |
GD901 (BK) |
20 |
GROUND - PASSENGER SEAT # RESTRAINTS CLEAN |
9U5T-14474-MA |
| 5 |
LR142 (YE-BU) |
20 |
CTRL MOD. - SENSOR SEATBELT TENSION FRONT PASSENGER OUTBOARD + |
9U5T-14474-MA |
| 6 |
VR210 (BU-BN) |
20 |
SENSOR - SEATBELT TENSION FRONT PASSENGER OUTBOARD |
9U5T-14474-MA |
