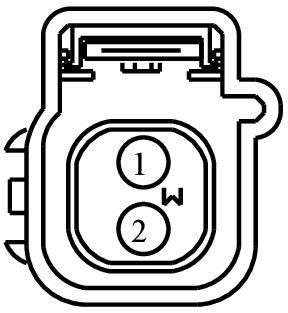

Connector End View (C3206) - INLINE
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3206 | INLINE | 14D23014C687/14D233 | See Below | |||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AHA | Not Available |
MALE
Harness
14D230
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (VT-GY) | 20 | 97BG-14421-AHA | |||
| 2 | RR106 (YE-OG) | 20 | 97BG-14421-AHA | |||
FEMALE
Harness
14C687/14D233
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (YE-OG) | 20 | NA | |||
| 2 | RR106 (VT-GY) | 20 | NA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1244
Service Part Number:
AU2Z-14S411-BMA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
Pigtail Kit Part Number WPT-1172
Service Part Number:
8U2Z-14S411-ABB
Gauge:
20
Pin material:
Gold
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
