Connector End View (C3202) - LOAD LIMITING RETRACTOR, PASSENGER

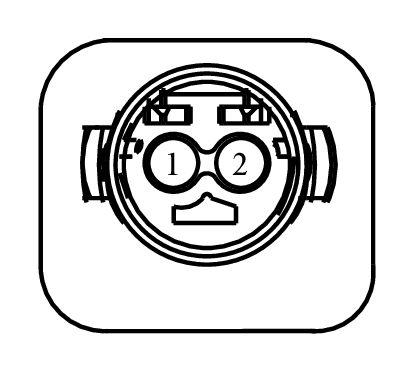

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3202	LOAD LIMITING RETRACTOR, PASSENGER	14A005			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR147 (GN-OG)	20	CTRL MOD. - SEATBELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD +	NA
2	RR147 (YE-VT)	20	CTRL MOD. - SEATBELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1224

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BGA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
