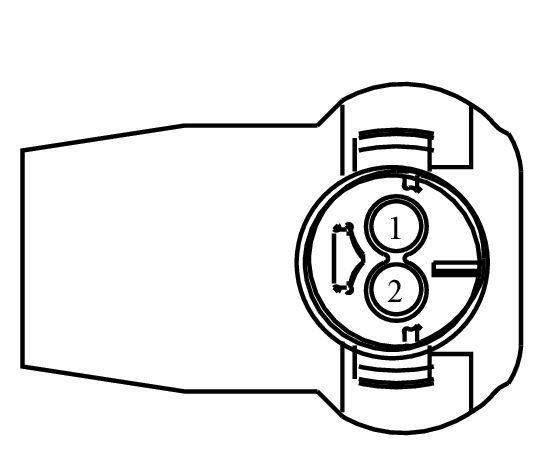

Connector End View (C2432) - DRIVER LOWER AIRBAG

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2432	DRIVER LOWER AIRBAG	14401			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +	NA
2	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1225

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BHA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Pretensioner - Seat Belt (Driver)
• Pretensioner - Seat Belt (Passenger)
• Sensor - Side Impact
• Squib - Airbag (Driver)
• Squib - Airbag (Passenger)
