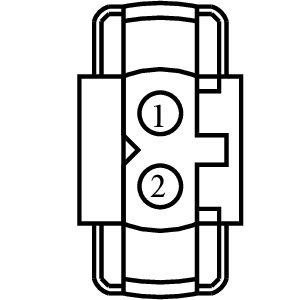

Connector End View (C2360) - COLLAPSIBLE STEERING COLUMN MODULE
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2360 | COLLAPSIBLE STEERING COLUMN MODULE | 14401 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR168 (WH-GN) | 20 | CTRL MOD. - PYROTECHNIC STEERING COLUMN + | NA | ||||
| 2 | RR168 (BU-WH) | 20 | CTRL MOD. - PYROTECHNIC STEERING COLUMN - | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1229
Service Part Number:
BU2Z-14S411-BNA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Deployable Steering Column
