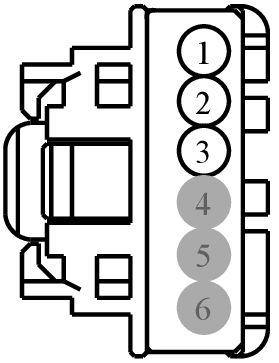

Connector End View (C2099) - PASSENGER AIRBAG DEACTIVATION (PAD) SWITCH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2099	PASSENGER AIRBAG DEACTIVATION (PAD) SWITCH	14401			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RR116 (BN-GN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE -	9U5T-14474-LA
2	CR195 (YE-BU)	18	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	9U5T-14474-MA
3	CR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +	9U5T-14474-LA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1249

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BYAC

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Lamp - Dome
• Lamp - Storage Compartment - Cargo
• Motor - Heater A/C Mode Door
• Motor - Heater/AC Blend Door
• Motor - Heater/AC Inlet Door
• Switch - Hazard Warning
• Switch - Heated Seat
• Switch - Heater A/C Blower (Rear)
• Switch - Speed Control
