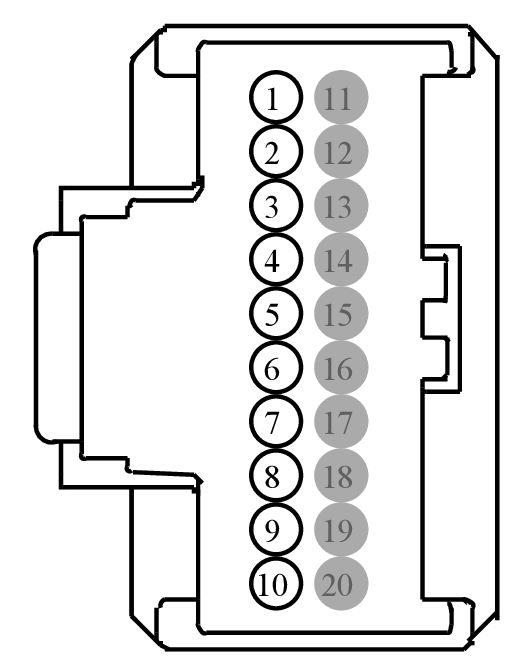

Connector End View (C341E) - DRIVER SEAT MODULE (DSM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C341E |
DRIVER SEAT MODULE (DSM) |
14D231 |
#N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RHS05 (YE-VT) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
NA |
| 2 |
RHS10 (BU-OG) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
NA |
| 3 |
VHS36 (YE-BU) |
20 |
SENSOR - BACK TEMP. PASSENGER |
NA |
| 4 |
VHS27 (WH-OG) |
20 |
SENSOR - CUSHION TEMP. PASSENGER OR RIGHT |
NA |
| 5 |
CHS14 (GN) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH |
NA |
| 6 |
VHS26 (VT) |
20 |
SENSOR - CUSHION TEMP. DRIVER OR LEFT |
NA |
| 7 |
VHS23 (BN-BU) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL |
NA |
| 8 |
VHS21 (BU-WH) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL |
NA |
| 9 |
VHS18 (BN-GN) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL |
NA |
| 10 |
CHS09 (GY) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW |
NA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
* |
* |
Not Used |
N/A |
