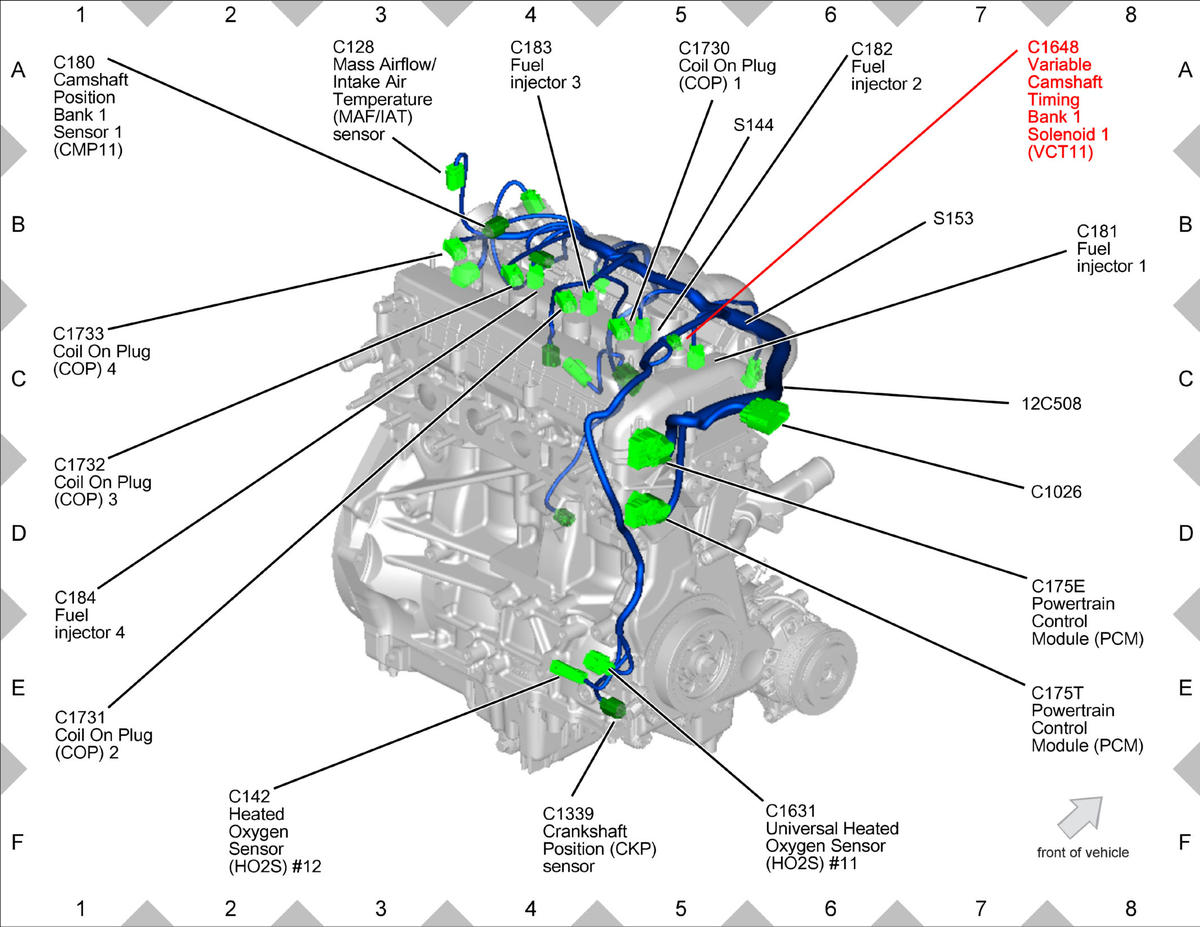

Variable Camshaft Timing Bank 1 Solenoid 1 (VCT11) On Top Of Engine Right

GFDWR71034

Courtesy of FORD MOTOR COMPANY
