Home >> Ford >> 2019 >> Fusion Energi Titanium >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid/ENERGI) >> Component Location Charts By Components >> Powertrain Control Module (PCM) On Top Right Rear Side Of Engine Compartment 1

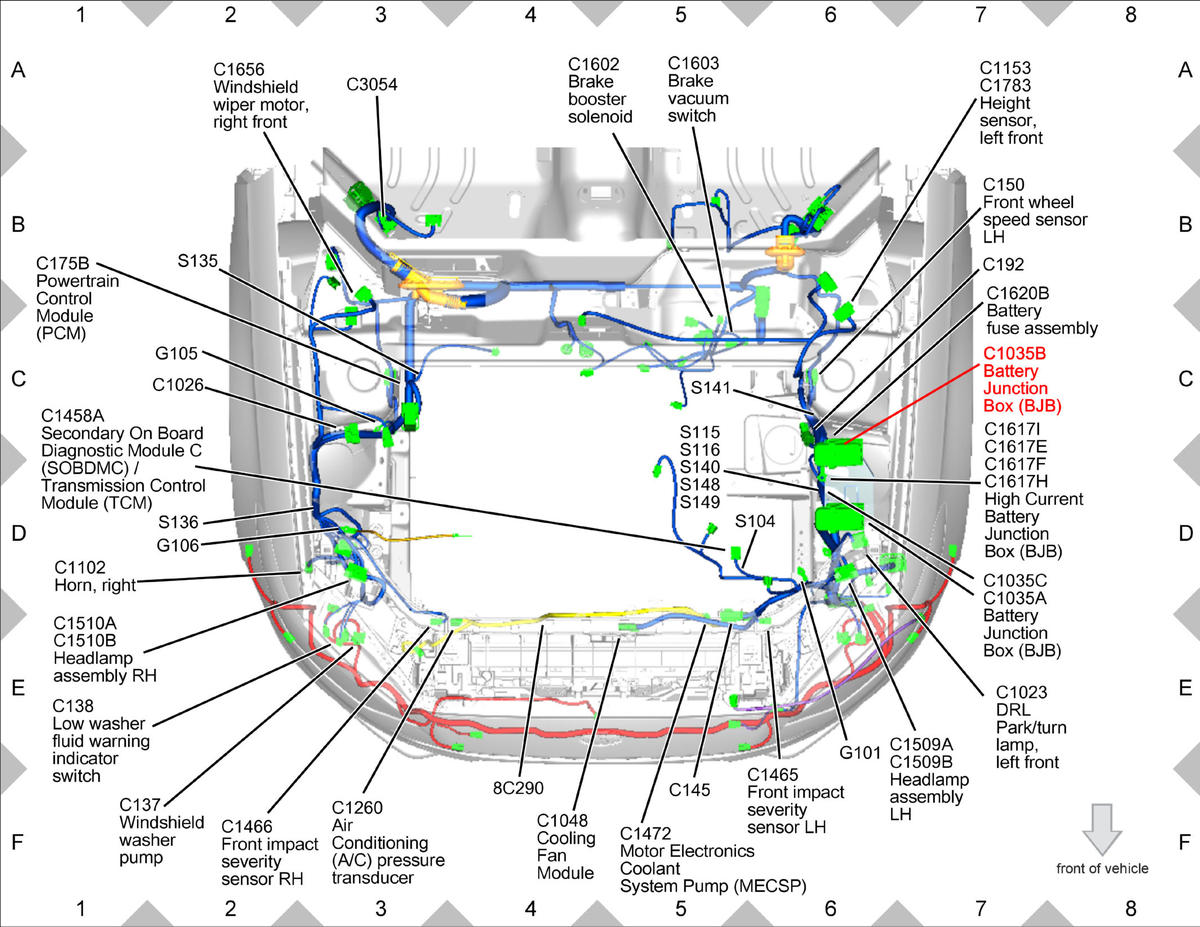

Powertrain Control Module (PCM) On Top Right Rear Side Of Engine Compartment 1

GFDWR70609

Courtesy of FORD MOTOR COMPANY
